User-defined Surface Chemistry Biochips

$95.00

What you receive is a #1.5 cover glass slip with an optically translucent coating, compatible with standard light microscopy, consisting of precisely spaced functional groups to be conjugated with custom chemistries

Each Biochip contains four ready-to-functionalize surfaces (RtF-SAMTM), provided sterile, in a sealed hypoxic container with desiccant and oxygen absorber. Can be functionalized via amine coupling reagents (preferred Nanocrine Protein Coupling Kit, Cat. # N9-PCK1

For use with the Nanocrine Multiwell Biochip Mount, Cat. # : N5-S4

Description

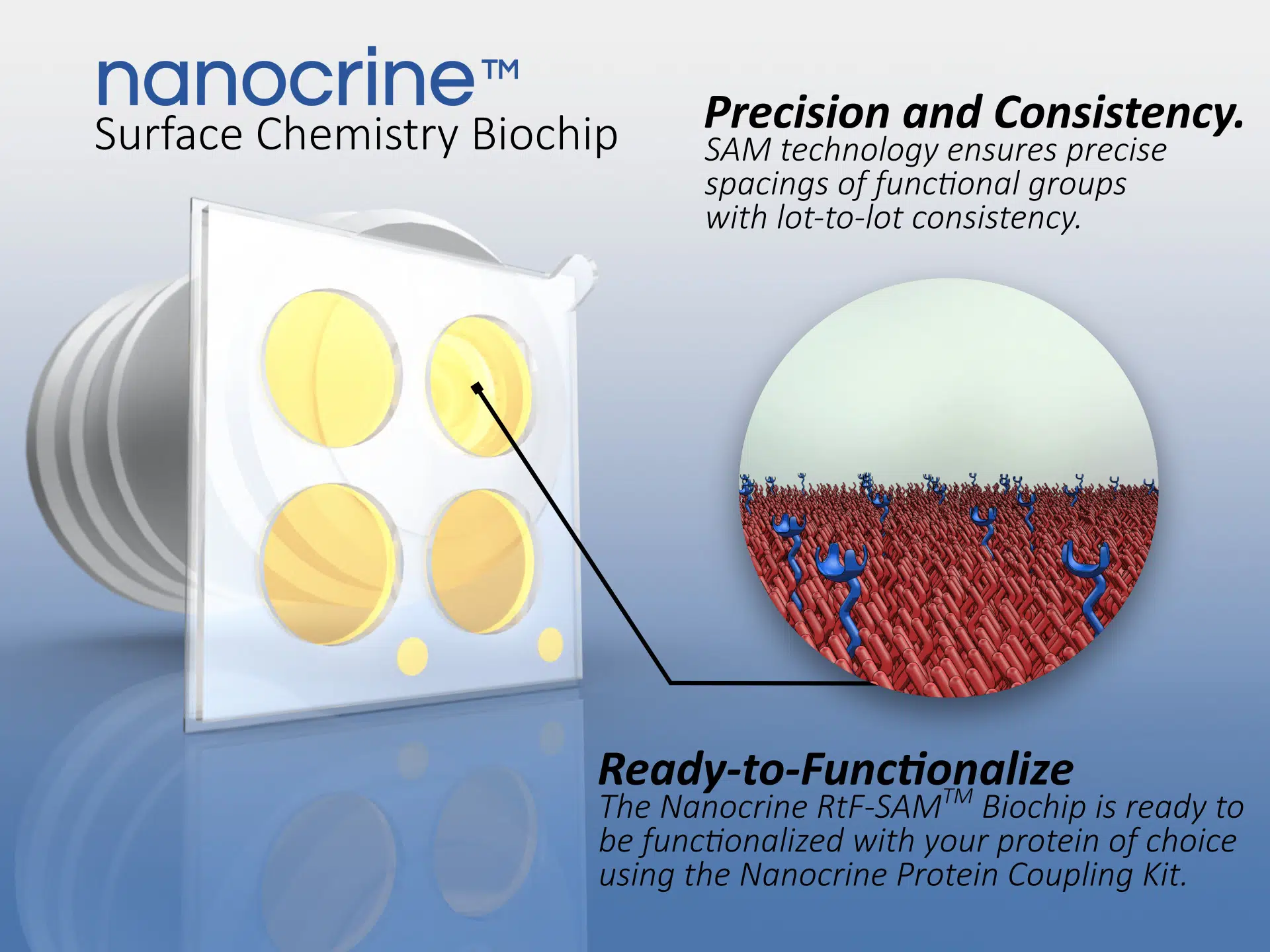

Nanocrine provides biochips with ready-to-functionalize, self-assembled monolayers (RtF-SAMTM) at specific molecular densities for users to define their surfaces with unique and custom chemistries. Available densities include mean distances of 2 nm, 6 nm, 19 nm, 59 nm, and 187 nm between -COOH functional groups.

Custom densities are available upon request.

Nanocrine Surface Chemistry Biochips provide a standardized and customizable test platform for assessing the influence of nearby molecular density and gradients on cell adhesion, viability and morphology. The biochips allow real-time monitoring of cells over a range of very specific chemical environments.

Each slide contains four ready-to-functionalize surfaces (RtF-SAMTM), provided sterile, in a sealed hypoxic container with desiccant and oxygen absorber. Can be functionalized via amine coupling reagents (preferred Nanocrine Protein Coupling Kit, Cat. # N9-PCK1

For use with Nanocrine Multiwell Biochip Mount, Cat. # : N5-S4

Specifications:

#1.5 cover glass

Culture area = 0.52 cm2

Cell seeding volume = 300 μl

Molecular ratio is verified using surface plasmon resonance (SPR)



Storage & Handling:

Shipped sterile

Designed for single use

Keep refrigerated at 2-8 °C and protect from light

Handle with forceps only



Key Features:

Permits user-defined chemical substrate environment at validated molecular spacing.

RtF-SAM surfaces are stable when properly stored, preventing wasted time between protein preparation/coupling and experimentation.



Related Products:

Order Nanocrine Coupling Kit separately (Cat. # N9-PCK1)
Control products include passivated surfaces (no functional groups for protein coupling, negative control) (Cat. # N8-PASS)

Additional information

Molecular Spacing

1:25 / 2 nm (Cat. #N1-SAM1-4), 1:250 / 6 nm (Cat. #N1-SAM2-4), 1:2500 / 19 nm (Cat. #N1-SAM3-4), 1:25000 / 59 nm (Cat. #N1-SAM4-4), 1:250000 / 187 nm (Cat. #N1-SAM5-4)
